Description

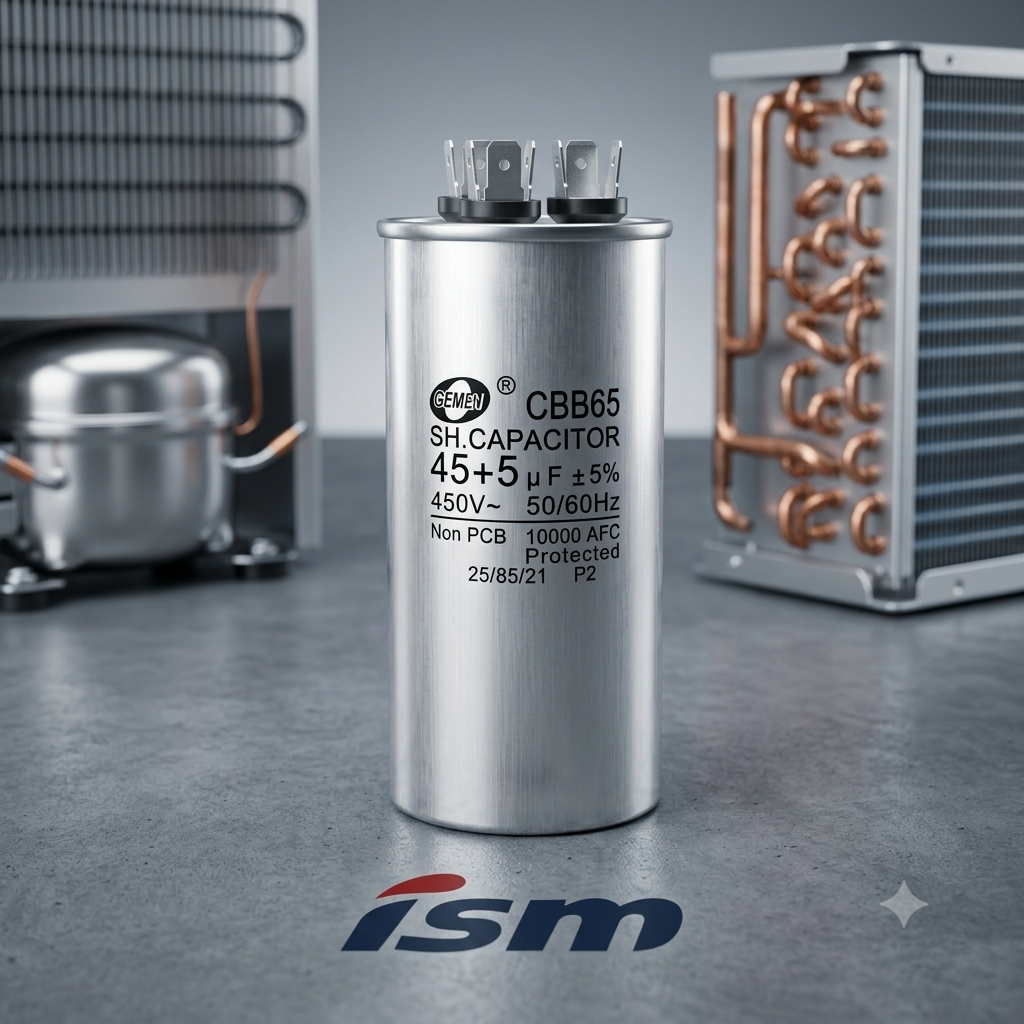

CBB65 Series
Construction
- Dielectric: polypropylene film
- Aluminum Round & Oval can
- Oil type
Features
- Self-heating properties
- Low dissipation factor
- Explosion proof device
- Highest safety level P2 safety class to IEC 60252-1
- High insulation resistance
Typical applications
- For general sine wave applications,
mainly as motor run capacitor, air connditioner.
Terminals
- Fast on
Mounting parts (optional)
- Threaded stud at bottom of can (M8, max.torque=5 Nm)
- Fast fixation for mounting into a hole of Φ8 mm
| Technical data and specifications | |||||
| Reference standards | IEC 60252-1 | ||||
| Safety class according IEC 60252-1 | P2 | ||||
| Life expectancy to IEC 60252-1 | 3,000(C) ~ 10,000h(B) | ||||
| Rated capacitance CR | 2µF ~ 150µF (MFD) | ||||
| Tolerance | ± 5% | ||||
| Rated voltage VR | 110VAC ~ 630VAC | ||||
| Rated frequency FR | 50/60Hz | ||||
| Maximum permissible votage Vmax | 1.1 x VR (VR=Rated voltage) | ||||
| Maximum permissible current Imax | 1.3 x IR (IR=Rated current) | ||||
| AC test voltage terminal to terminal VTT | 2 x VR, 2s (routine test) | ||||
| 2 x VR, 60s (type test) | |||||
| Insulation voltage terminal to case | 1.75 x VR, 2s (type test) | ||||
| 1.75 x VR, 60s (routine test) | |||||
| Dissipation factor tan δ | ≤0.002 (50Hz) | ||||
| Climate types | 25/085/21 to IEC 60068-1 | ||||
| Dimensions (mm) (Single Bobbin) | ||||||
| uF/MFD | Cylinder Case | Oval Case | ||||
| 10 | 40 | 70 | 40 | 70 | 50x32x60 | 50x32x60 |
| 12 | 40 | 70 | 40 | 80 | 50x32x60 | 70x45x80 |
| 12.5 | 40 | 70 | 40 | 80 | 50x32x60 | 70x45x80 |
| 14 | 40 | 80 | 40 | 80 | 50x32x60 | 70x45x80 |
| 15 | 40 | 80 | 40 | 80 | 50x32x60 | 70x45x80 |
| 16 | 40 | 80 | 45 | 90 | 70x45x80 | 70x45x80 |
| 18 | 40 | 80 | 45 | 90 | 70x45x80 | 70x45x80 |
| 20 | 40 | 80 | 45 | 90 | 70x45x80 | 70x45x80 |
| 21.5 | 40 | 80 | 45 | 90 | 70x45x80 | 70x45x80 |
| 22.5 | 40 | 80 | 45 | 90 | 70x45x80 | 70x45x80 |
| 25 | 45 | 90 | 45 | 90 | 70x45x80 | 70x45x80 |
| 30 | 50 | 100 | 50 | 100 | 70x45x90 | 70x45x80 |
| 35 | 50 | 100 | 50 | 110 | 70x45x80 | 70x45x80 |
| 40 | 50 | 110 | 50 | 110 | 70x45x90 | 70x45x110 |
| 45 | 50 | 110 | 50 | 120 | 70x45x90 | 70x45x110 |
| 50 | 50 | 110 | 50 | 120 | 70x45x90 | 70x45x110 |
| 55 | 55 | 130 | 55 | 130 | 70x45x110 | 70x45x110 |
| 60 | 55 | 130 | 55 | 130 | 70x45x110 | 70x45x130 |
| 70 | 60 | 120 | 60 | 120 | 70x45x130 | 70x45x130 |
| 80 | 60 | 120 | 60 | 130 | 70x45x130 | 70x45x130 |
| 90 | 60 | 120 | 60 | 130 | 70x45x130 | 70x45x130 |
| 100 | 60 | 120 | 60 | 130 | 70x45x130 | 70x45x130 |
